This is an active equaliser Capacitor based highly efficient and easy to use and best in class.
JK brand is known for its Active Balancing Technology and this is brought to you in a small package of our 4A Active Equaliser that supports multiple series from 2-24s and multiple chemistry too.
Hurry up, get one for yourself today for business or personal use to extended your battery's life.

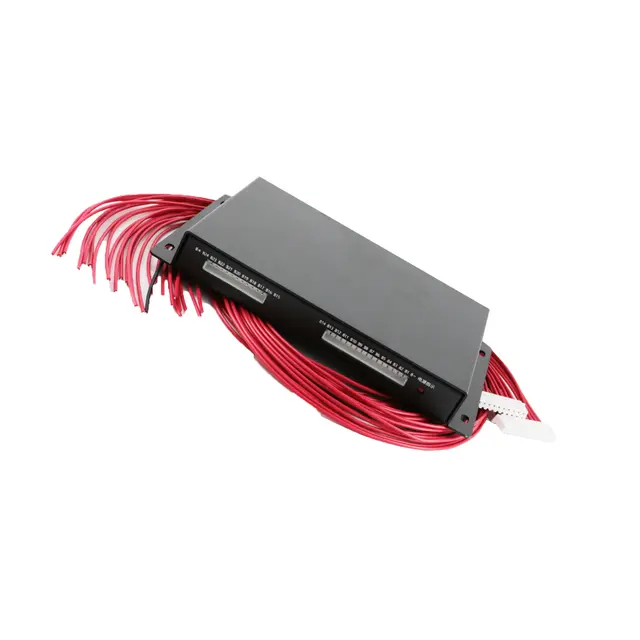

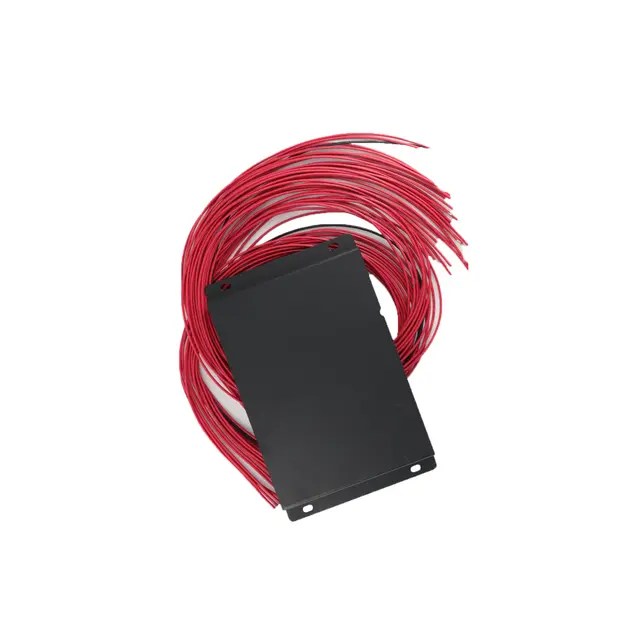

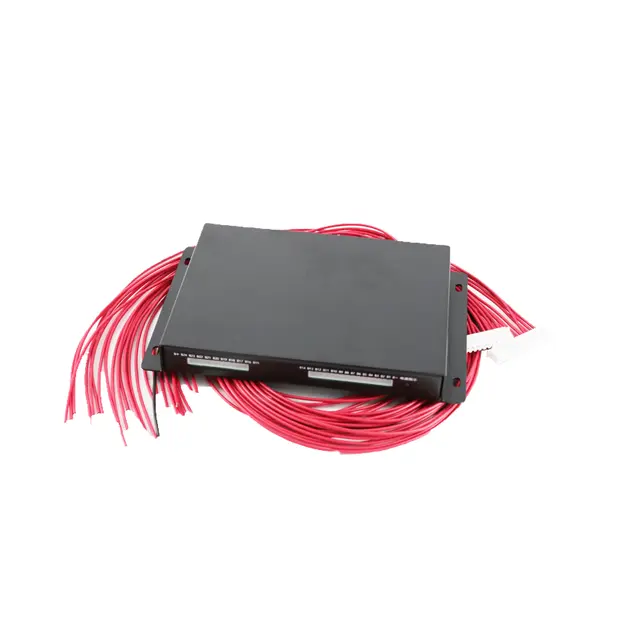

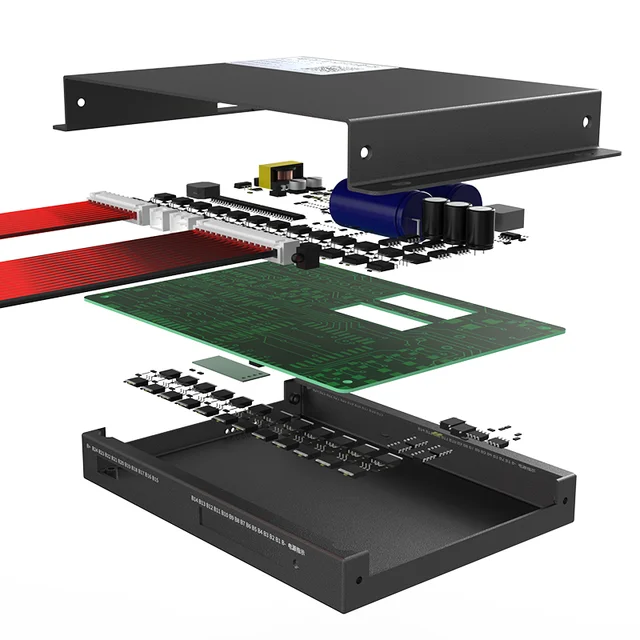

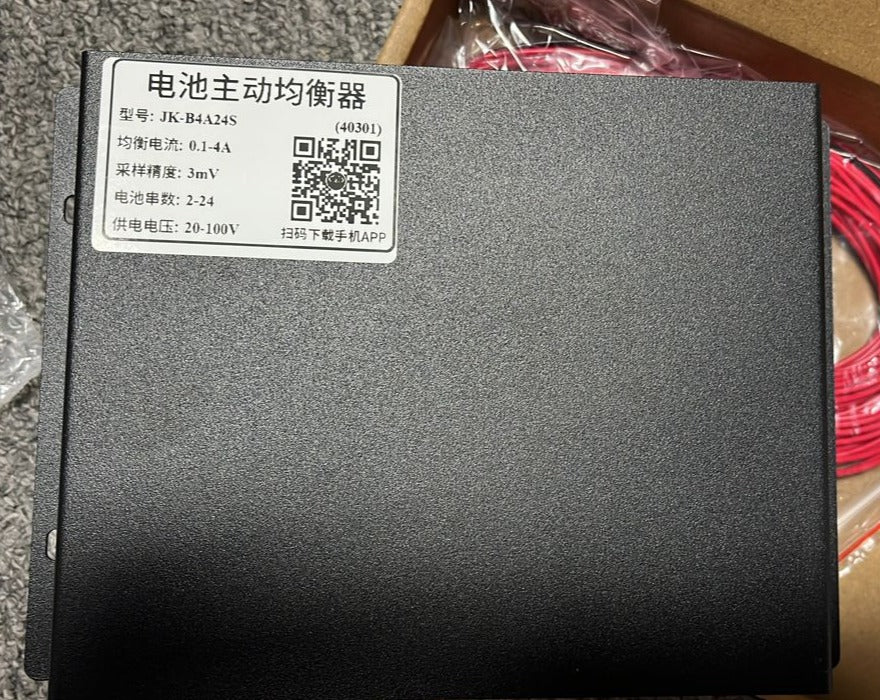

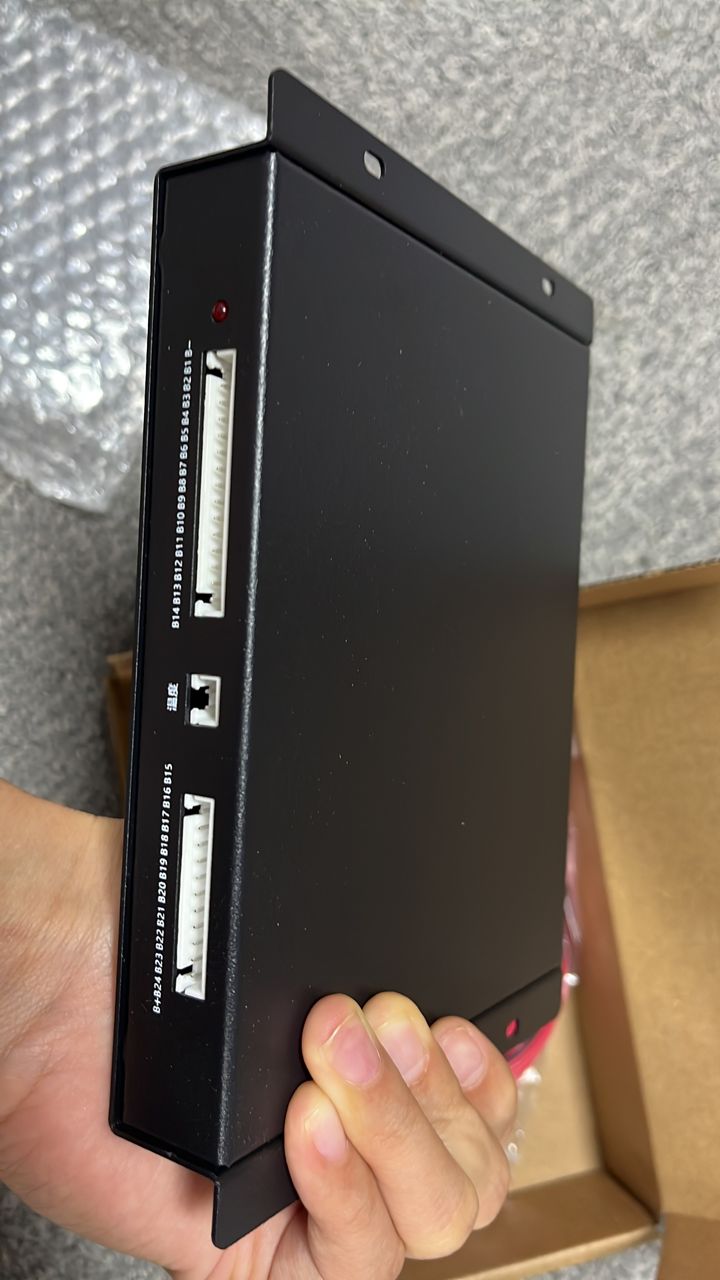

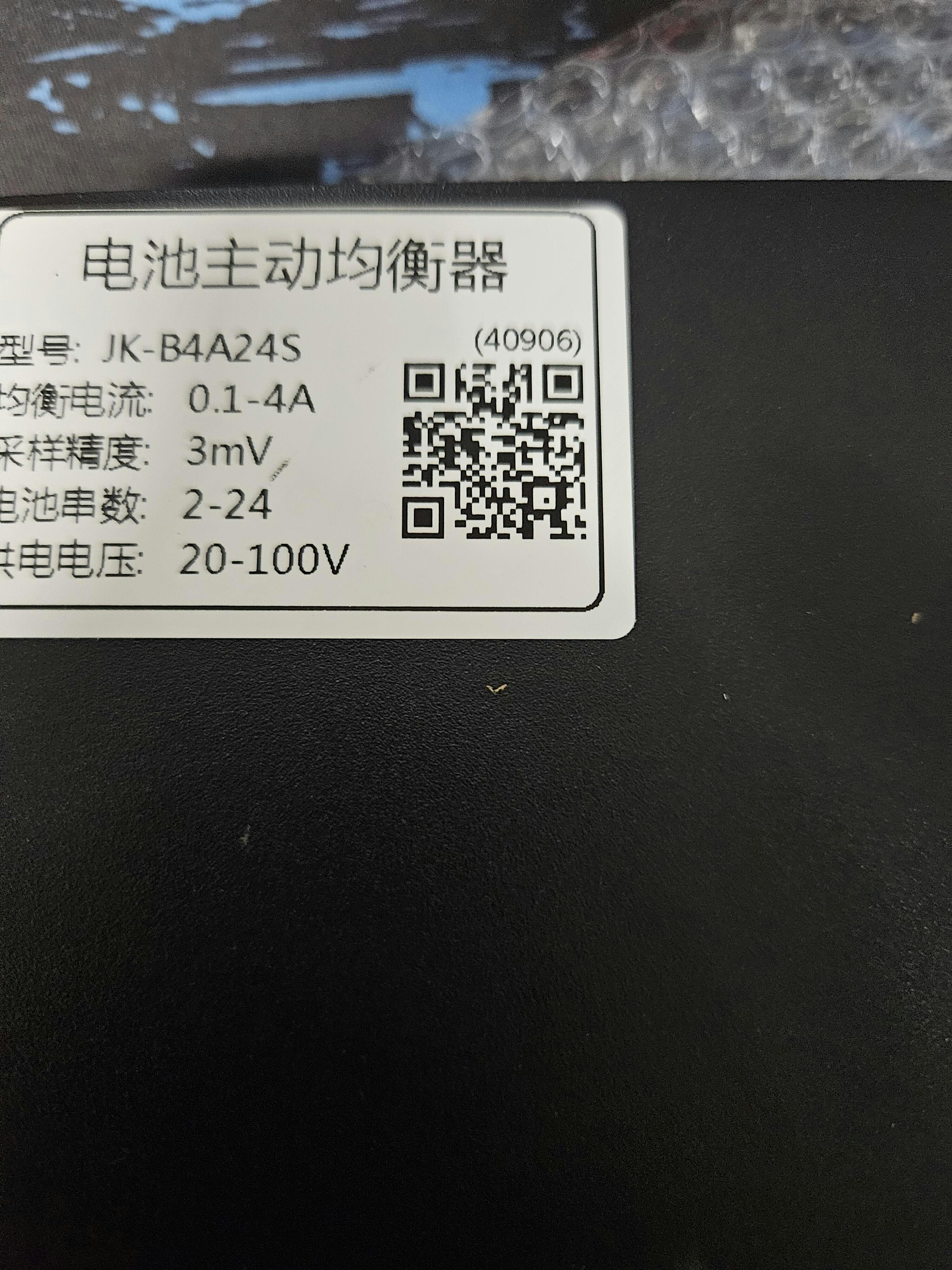

Battery Active Equalizer (JK-B4A24S) is a balanced solution for large-capacity series lithium battery packs Management system.The equalizer uses a supercapacitor as a medium to achieve active energy transfer equalization.
The equalizer is suitable for 2 to 24 strings of battery packs with voltage acquisition and equalization. The equalizer works for 4A The equalized current is used for energy transfer, and the equalization current does not depend on the voltage difference of the series connected cells in the battery pack. Voltage acquisition range1 V ~ 5V, accuracy ± 3mV. Applicable to all kinds of batteries on the market such as lithium iron phosphate, ternary lithium, titanic acid, lithium lead acid, etc.

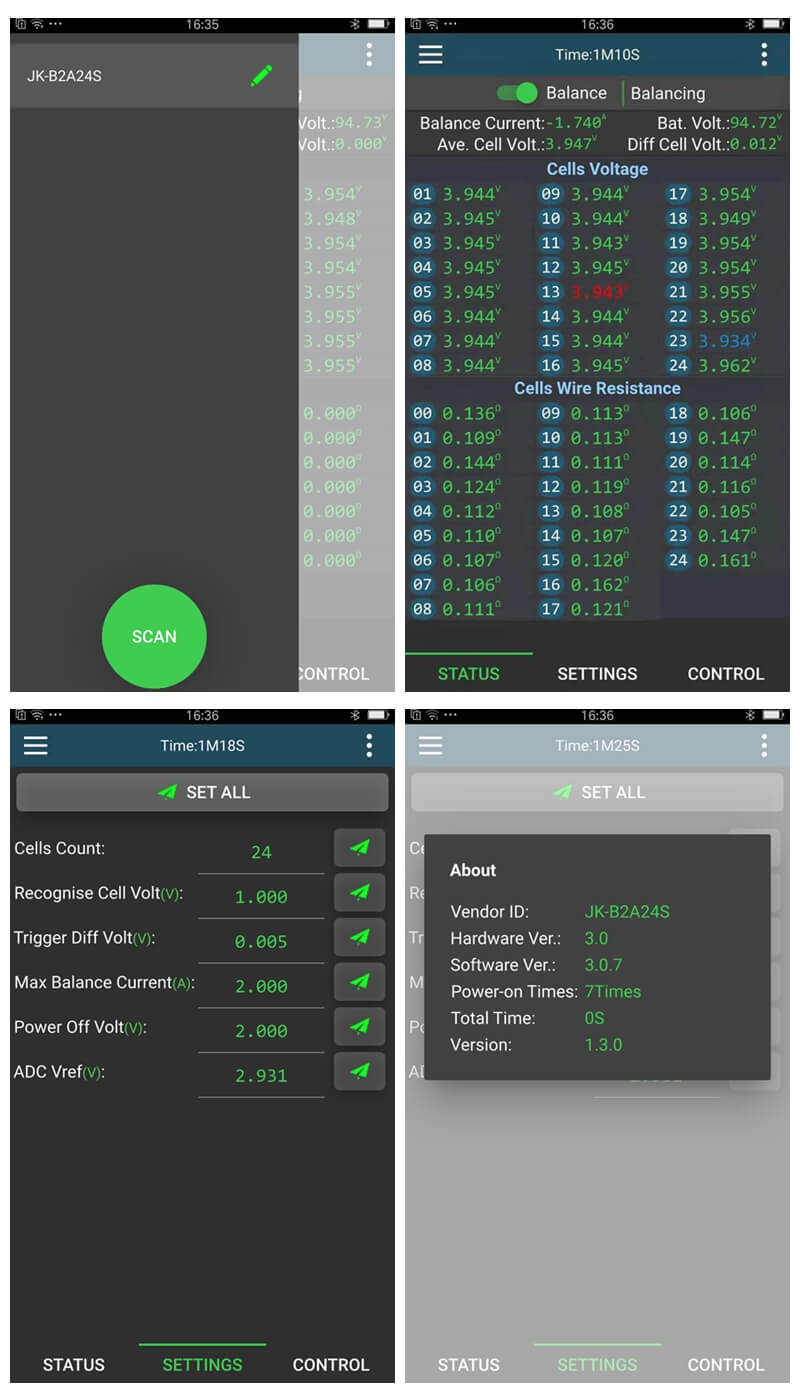

The equalizer has a Bluetooth communication function and is equipped with mobile APP software. Can be viewed via Bluetooth connected equalizer Single cell voltage, view equalization status, modify setup parameters, etc. Can be applied to small sightseeing cars, scooters,Enjoy battery, battery power, base station backup power, solar power station and other products in the battery PACK, can also be used for batteries
Balance maintenance, repair and other occasions.
2. Main technical parameters:
2.1 Main Specifications

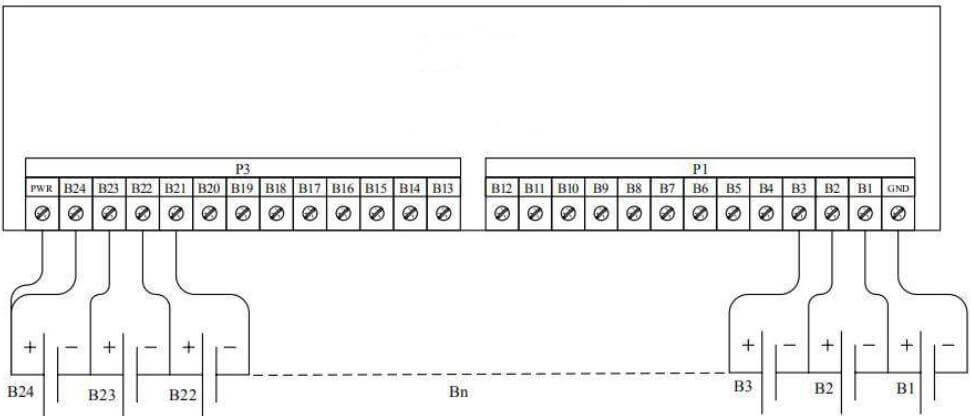

◆ Support 2~24 strings of battery packs;
◆ Real-time, active, energy transfer equalization, after the balance is reached, the pressure difference between the cells is ≤ 3mV;
◆ Single voltage range 1V ~ 5V, accuracy ± 3mV;
◆ Support all battery types such as ternary, iron lithium, lead acid, super capacitor;
◆ The equalization current is set independently in the range of 0.1~4A, independent of the cell voltage difference;
◆ Support balanced cascading to apply to more than 24 series of battery packs, in theory, can be cascaded indefinitely;
◆ Bluetooth communication function, equipped with APP, to view the state of the battery in real time;
◆ Equilibrium line resistance detection, abnormal contact failure is found in advance;
◆ Power supply range: 40V~100V
◆ Low voltage shutdown function to prevent battery damage.
2.2 Use of environmental conditions
- a) Operating temperature range: -20 ° C ~ 70 ° C;
- b) Power requirements: 40~100V, can be self-powered by battery or external power supply.
- c) Power consumption: Equilibrium state 10mA@100V, unbalanced state 6mA@100V.
